JIUSI PT14R 1/14 RC Monster Truck - 50mph Brushless 4WD Waterproof with 3S Battery RTR-2 Batteries
Regular price
$145.99
Sale price
$145.99
Regular price
$229.99
Unit price
Navy
JIUSI PT14R 1/14 RC Monster Truck - 50mph Brushless 4WD Waterproof with 3S Battery RTR-2 Batteries
DESCRIPTION
SHIPPING & RETURN
Overview
Features
Specs
Videos

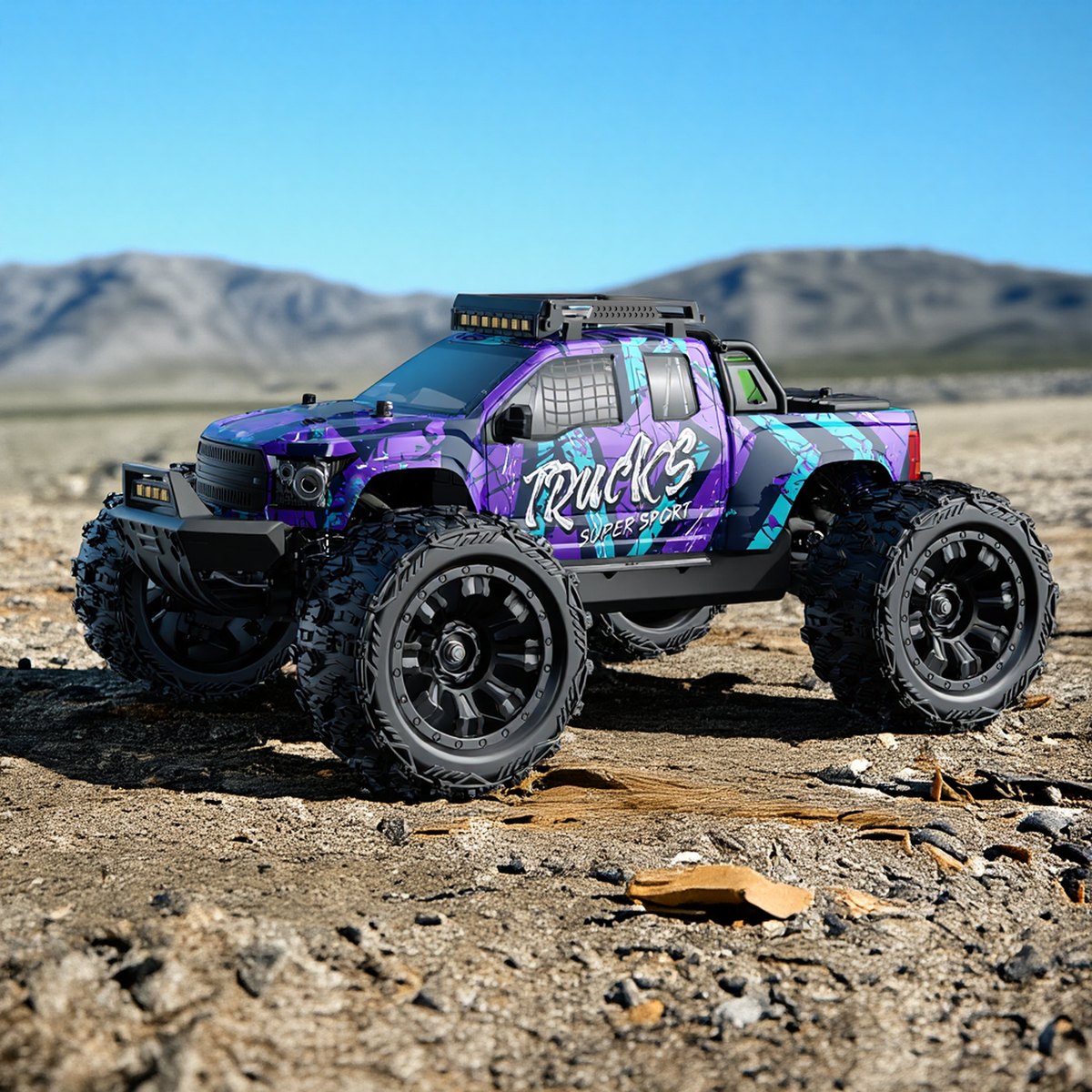

JIUSI PT14R RC Monster Truck - Ultimate 1:14 Scale Racing Beast
Experience the fastest 1/14 scale RC monster truck designed for enthusiasts
🏁 Ready to Dominate Any Terrain? The JIUSI PT14R delivers professional-grade performance with speeds reaching 50mph (80 km/h) - outperforming most 1/10 scale RC cars! Engineered for both weekend warriors and competitive RC racers who demand uncompromising reliability, precision control, and pure adrenaline-pumping speed.
⚡ 2S: 50 km/h | 3S: 80 km/h MAX SPEED ⚡
Why PT14R Dominates the RC Monster Truck Market
Advanced Features That Set PT14R Apart From Competitors:
- IPX6 WATERPROOF BRUSHLESS SYSTEM - Race in any weather condition, rain or shine
- 45,360 RPM ROCKET BRUSHLESS MOTOR - More power than most 1/10 scale RC cars
- FULL METAL BALL BEARING DRIVETRAIN - Professional-grade smooth operation and extended lifespan
- 26-MINUTE EXTENDED RUNTIME - Longer play sessions than typical RC monster trucks

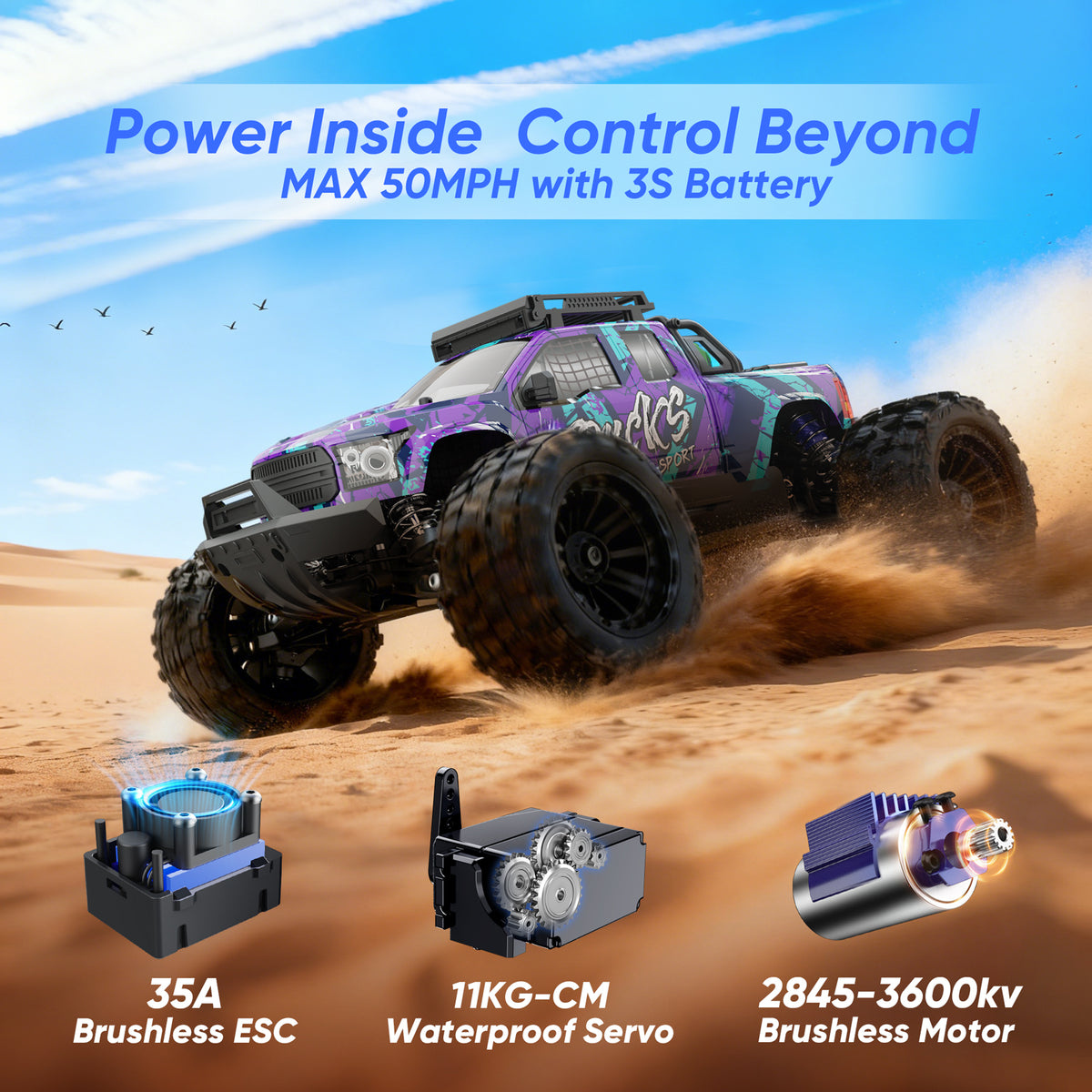

Powered by a competition-grade Rocket 2845 brushless motor (3600KV) and protected by a waterproof 35A ESC with active cooling fan, the PT14R delivers explosive acceleration and consistent power delivery that leaves other RC trucks in the dust.
💡 SPEED UPGRADE TIP: Switch to included 18T pinion gear for maximum 80 km/h performance!
Scale
1:14 Monster Truck
Drive System
4WD All-Wheel Drive
Max Speed
50mph (80 km/h)
Runtime
26 Minutes
| Professional RC Systems | Performance Advantages & Technical Specifications |
|---|---|
| Waterproof Brushless Power System | 3600KV Rocket motor delivering 45,360 RPM maximum speed - Significantly more powerful than most 1/10 scale RC cars! IPX6 waterproof rating with integrated heat sink cooling ensures consistent performance. Advanced brushless technology provides linear acceleration response and explosive torque delivery for competitive racing advantage. |
| 35A High-Performance ESC Controller | IPX6 splash-proof rating with built-in cooling fan system - Handles demanding 3S battery configurations for maximum power delivery. Continuous 35A current output with ultra-fast throttle response for precise control. Smart overload protection prevents component damage during extreme driving conditions. |

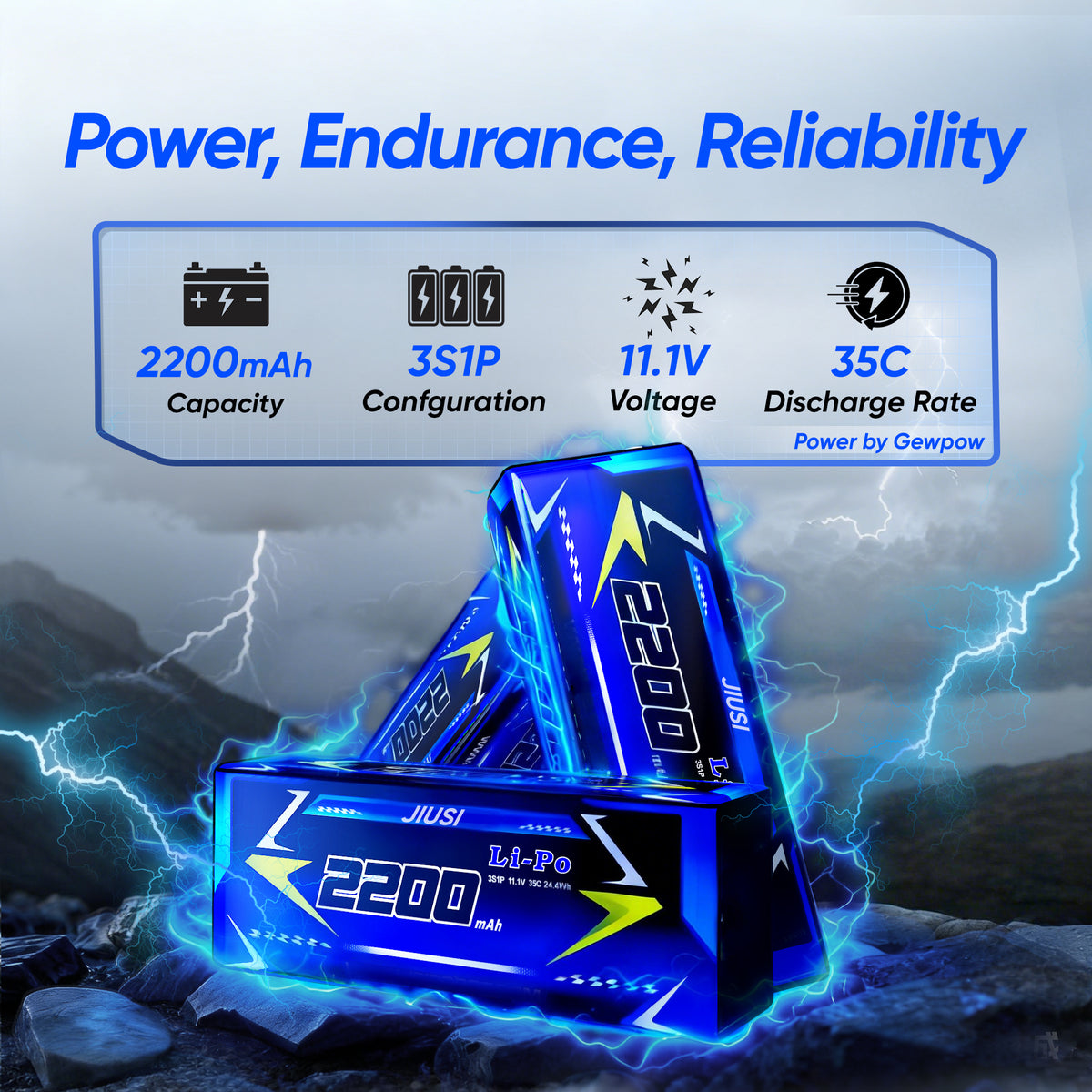

| Extended Runtime Battery System | Professional 3S 2200mAh 35C LiPo battery pack - Delivers 26 minutes normal driving or 13 minutes full-throttle racing performance. Standard 2-hour charging time (1 hour with fast charger upgrade). Significantly longer runtime than typical RC monster trucks in this class. |
| Precision Waterproof Servo System | 11kg-cm torque rating with metal gear construction - Completely waterproof design with minimal backlash for precise steering control. Superior stability and responsiveness compared to plastic gear servos. Extended service life in demanding off-road and all-weather conditions. |
| Professional Ball Bearing Drivetrain | Complete metal ball bearing system throughout entire drivetrain - Dramatically smoother operation reduces motor load and extends component lifespan. Superior performance compared to bushing systems, enabling higher speeds and improved efficiency for competitive racing. |
| Advanced CVD Drive System | Front CVD metal drive shafts combined with rear steel dogbone configuration - CVD design significantly improves steering smoothness while maintaining maximum strength. Rear dogbone shafts reduce rotating weight for faster acceleration and improved handling characteristics. |
| Slip-Protection Transmission | Intelligent overload slip protection system - Prevents expensive gear and drivetrain damage from excessive impact forces. Extends transmission lifespan and reduces long-term maintenance costs for serious RC enthusiasts. |

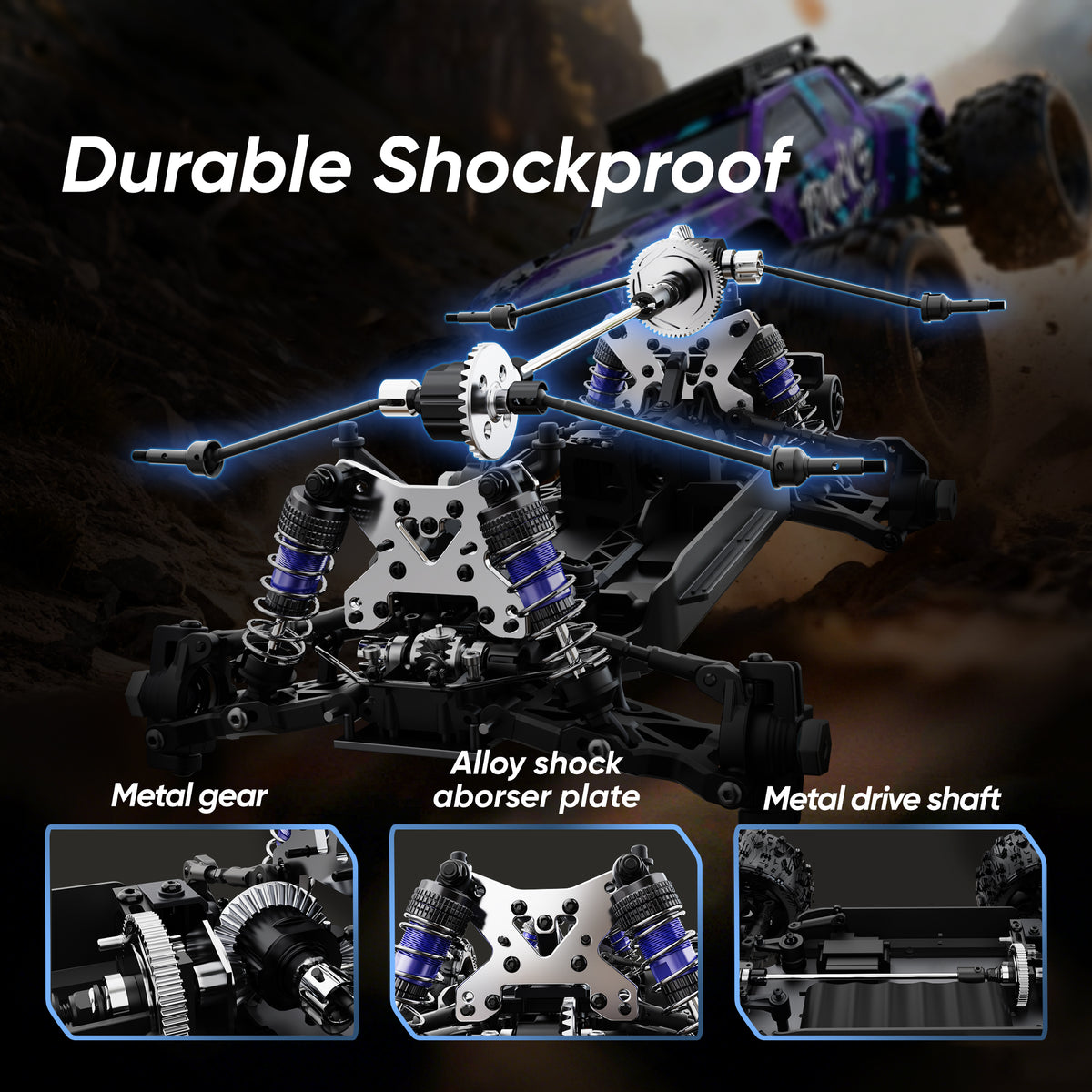

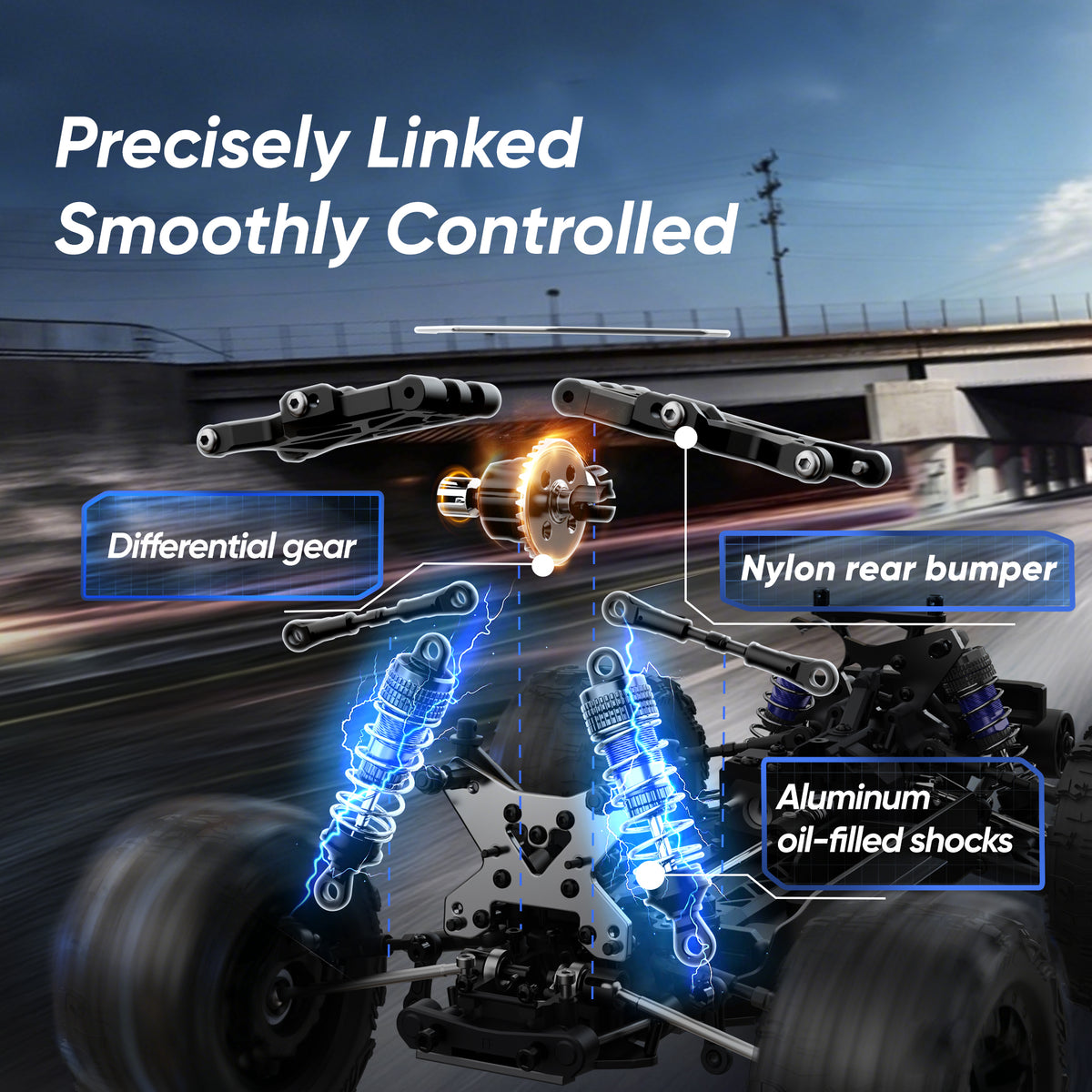

| Oil-Filled Metal Differential | Precision metal differential gears with sealed oil chamber design - Enhanced strength and longevity compared to plastic alternatives. User-replaceable differential oil allows fine-tuning customization for different driving surfaces and racing conditions. |
| Adjustable Racing Suspension | All-metal construction with fully adjustable preload system - Fine-tune ride height optimization for different terrain types. Advanced hydraulic design allows oil viscosity changes for personalized handling characteristics. Metal coil springs provide optimal support and progressive damping. |

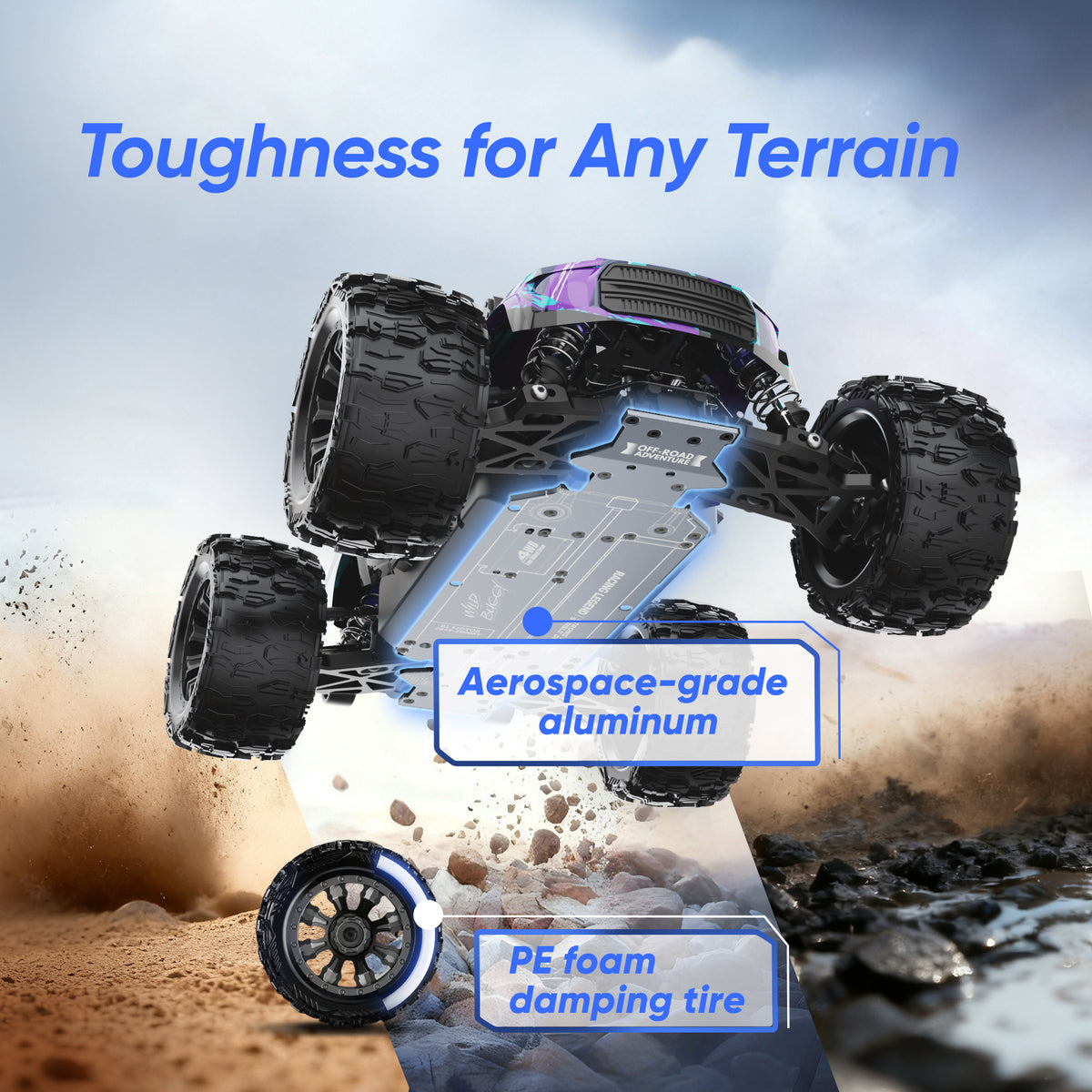

| Competition-Grade Aluminum Chassis | 2mm CNC-machined aluminum with cross-braced support structure - Race-proven lightweight construction delivers maximum rigidity and durability. Superior power-to-weight ratio compared to plastic chassis alternatives for enhanced performance. |
| Dual-Speed Gear System | Interchangeable pinion system (15T standard + 18T high-speed included) - Easily switch between 50km/h cruising mode and 80km/h maximum speed configuration. Tool-free gear changes allow quick performance adjustments. |
| Impact Protection System | Heavy-duty front bumper with integrated anti-roll bar system - Absorbs crash impacts while protecting expensive chassis components. Enhanced stability during high-speed cornering and jump landings for aggressive driving styles. |

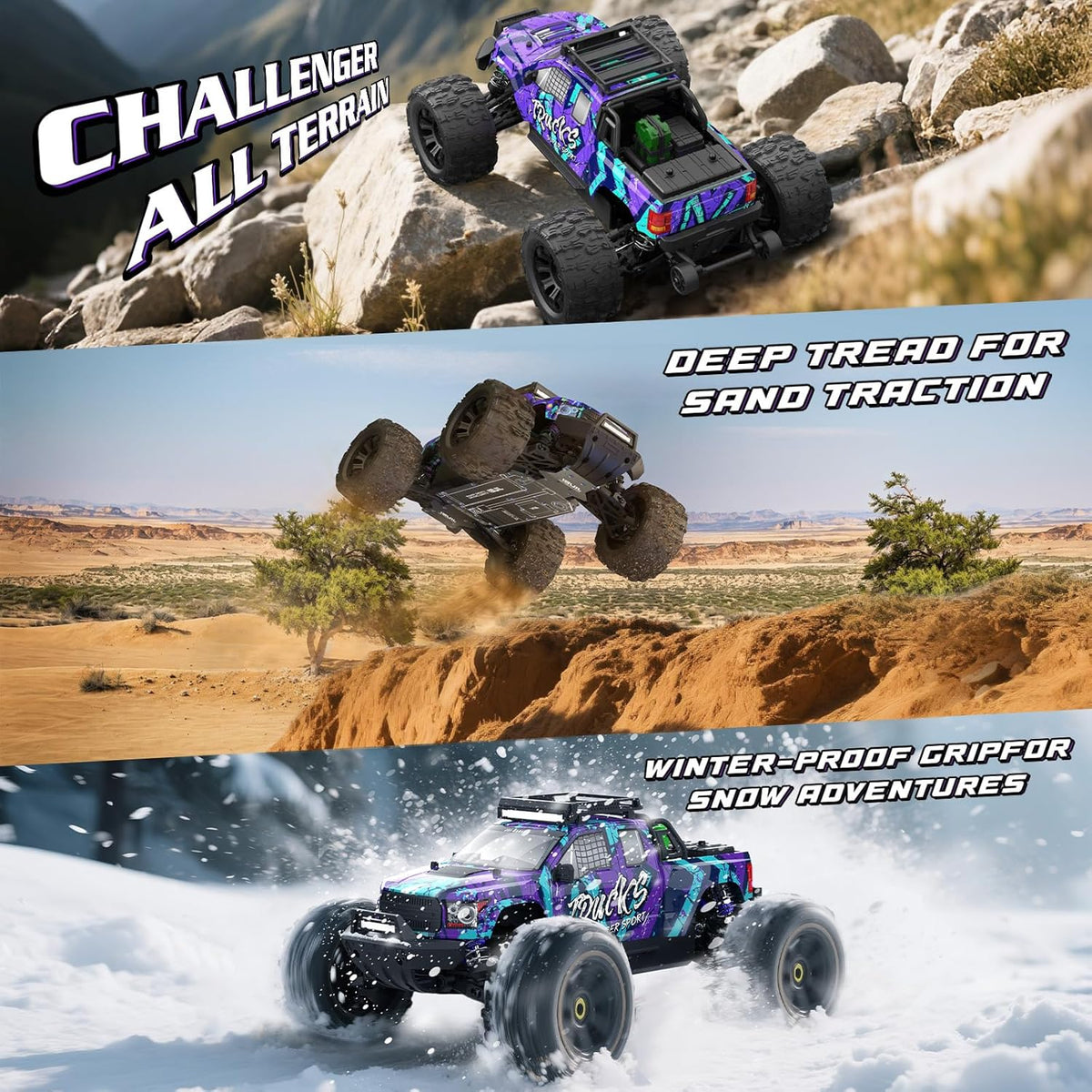

| Superior Ground Clearance Design | 50mm clearance with large Ø87×44mm all-terrain tire package - Natural rubber compound with aggressive tread pattern design. Exceptional grip performance across any surface from smooth asphalt to rough off-road terrain. |
| Advanced Stunt Performance | Adjustable wheelie bar system for advanced maneuvers - Master wheelies, flips, and advanced RC driving techniques with confidence. Perfect for developing professional-level RC skills and impressing at local racing tracks. |
Complete Technical Specifications
RC Monster Truck Specifications
| Model Name | JIUSI PT14R |
| Product Code | MX-16 |
| Scale | 1:14 Monster Truck |
| Drive System | 4WD (All-Wheel Drive) |
| Overall Dimensions | 320×229×140mm |
| Wheelbase | 195mm |
| Ground Clearance | 50mm High Clearance |
| Vehicle Weight | 1.2kg |
| Maximum Speed | 2S: 50km/h | 3S: 80km/h |
Power System & Electronics
| ESC Controller | 35A IPX6 Waterproof (3S Compatible) |
| ESC Cooling | Built-in Cooling Fan |

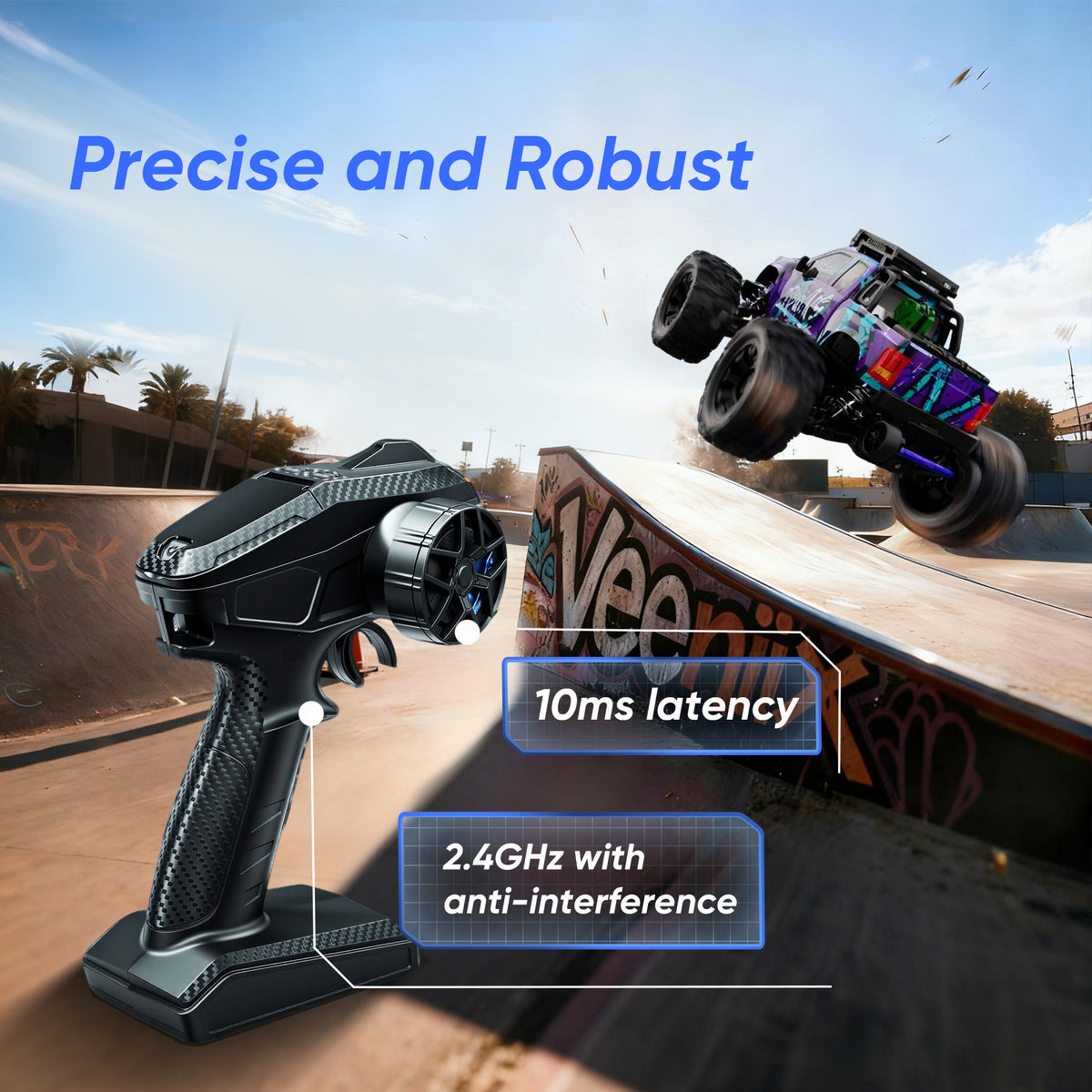

| Remote Control | 2.4GHz 4-Channel |
| Brushless Motor | Rocket 2845 3600KV (IPX6 Waterproof) |
| Maximum RPM | 45,360 RPM |
| Battery Pack | 3S 35C LiPo 2200mAh |
| Runtime | 26 min (normal) / 13 min (racing) |
| Charging Time | 2 hours (1 hour fast charge) |
| Steering Servo | 11kg-cm Waterproof Metal Gear |
Chassis & Drivetrain Components
| Chassis Material | 2mm Aluminum CNC Precision Machined |
| Shock Tower | 4mm Aluminum Alloy Construction |
| Shock Absorbers | All-Metal Oil-Filled Ø16×71mm |
| Shock Features | Adjustable Preload + Hydraulic Design |
| Spring System | Metal Coil Springs |
| Bearing System | Full Metal Ball Bearing Throughout |
| Drive Shafts | Front: CVD Metal / Rear: Steel Dogbone |
| Tire Package | Ø87×44mm All-Terrain (JS Rims) |
| Body Shell | PC Material with Custom Racing Decals |
Advanced Performance Components
| Motor Pinion | 15T (Standard) + 18T (High-Speed) |
| Differential | Metal Gears + Sealed Oil Chamber |
| Main Gear | 59T CNC Steel with Slip Protection |
| Upper Links | Length-Adjustable Steel |
| Waterproof Rating | IPX6 (Motor + ESC + Servo) |
| Cooling System | Motor Heat Sink + ESC Fan |
| Rear Wing | Included for Stability |
| Protection | Front Bumper + Anti-Roll Bars |
| Wheelie Bar | Adjustable (Stunt Performance) |

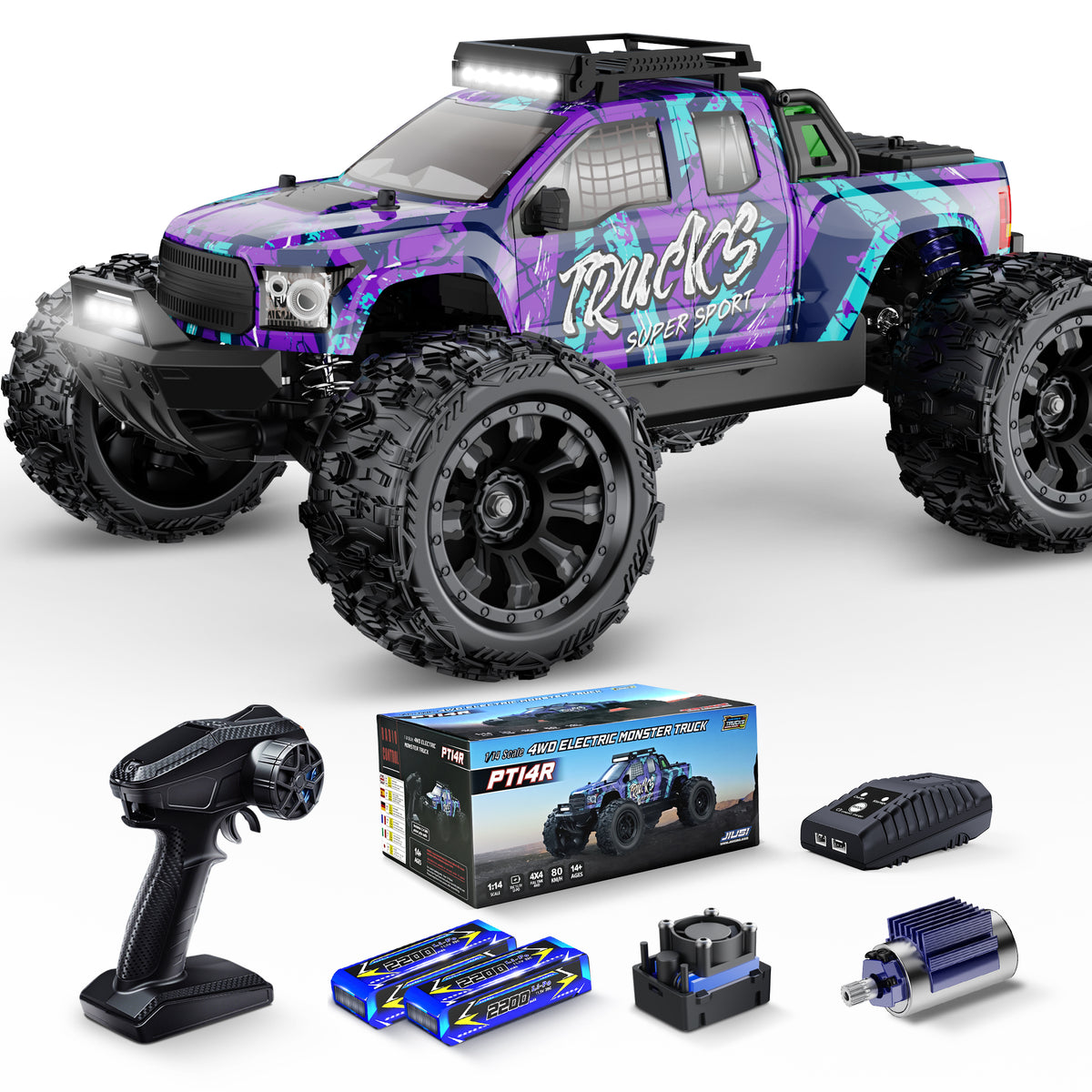

Complete RTR Package Contents

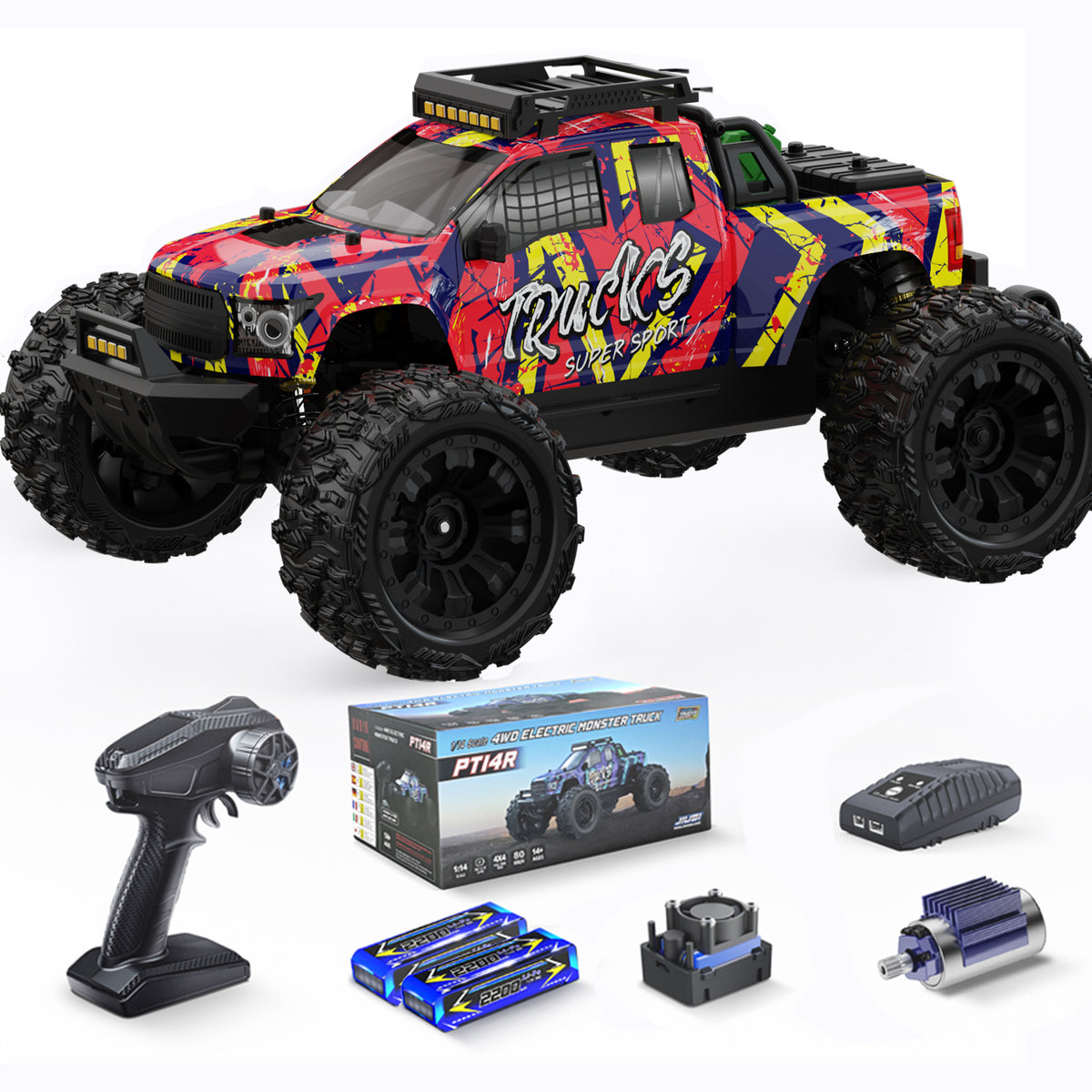

Ready-to-Run Package Includes:

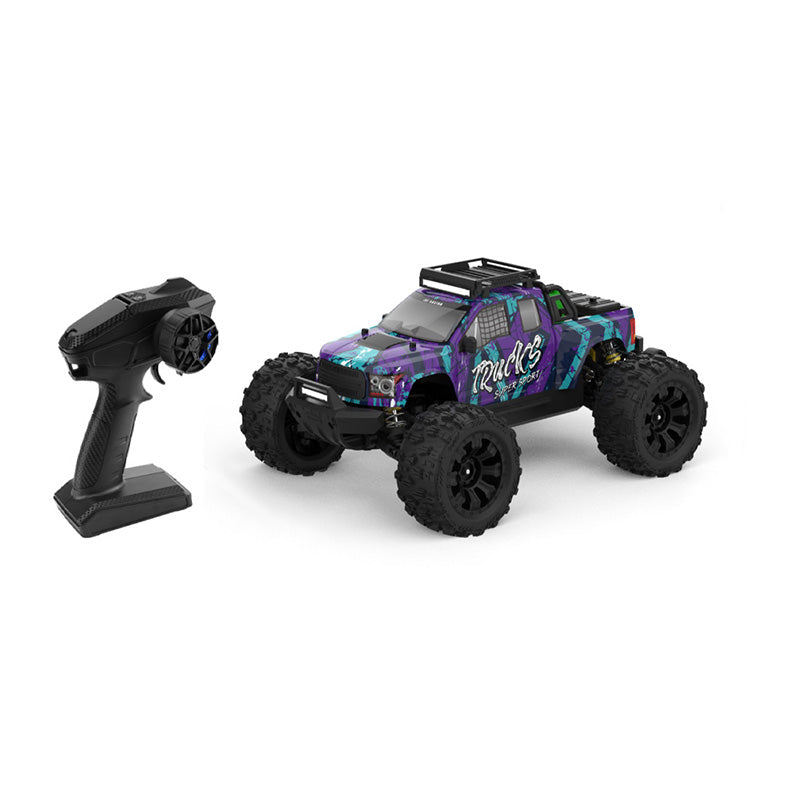

- PT14R Complete RC Monster Truck (Fully Assembled)
- 2.4GHz 4-Channel Remote Controller
- 3S 2200mAh 35C LiPo Battery Pack

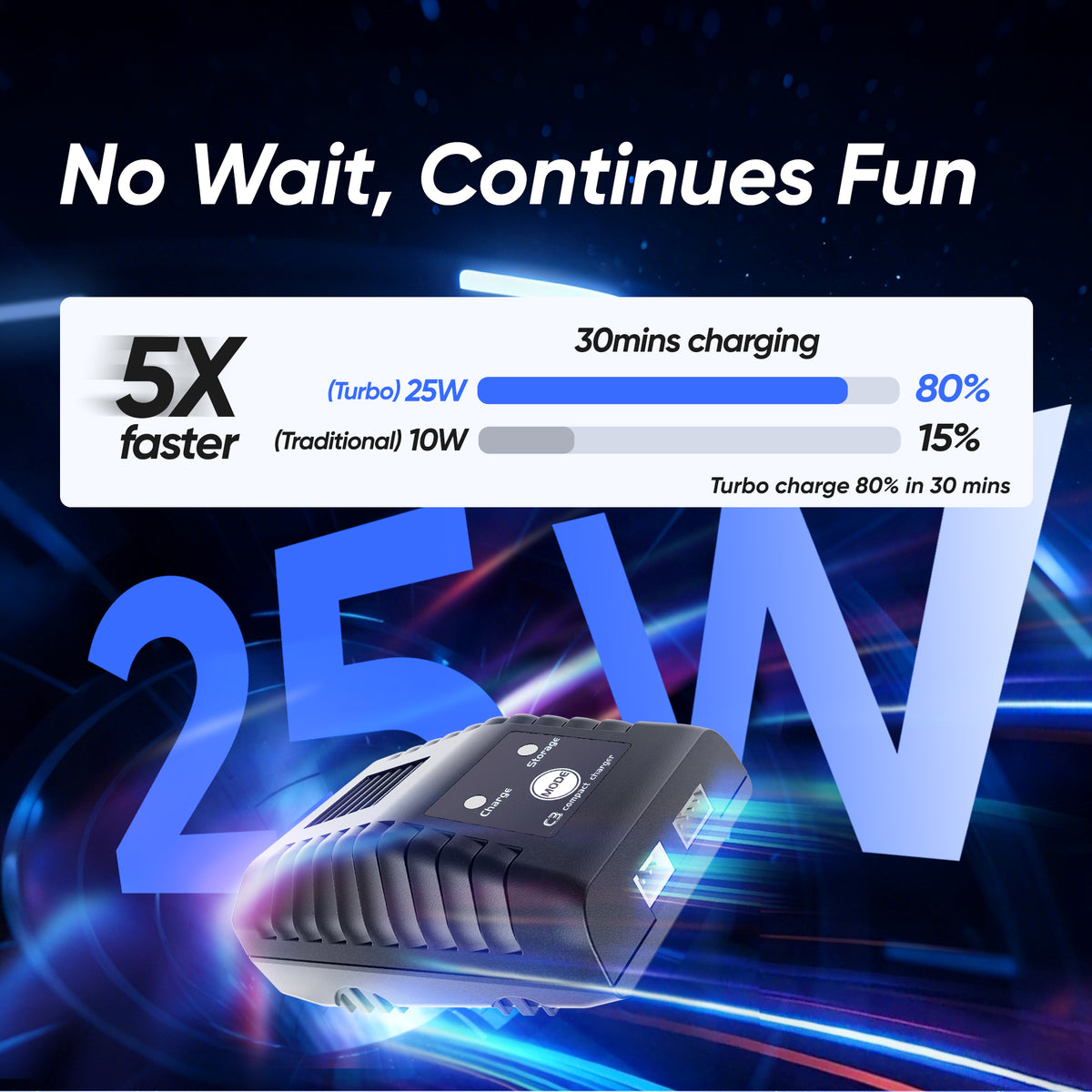

- Professional Battery Charger (2-hour charging)
- 18T High-Speed Motor Pinion Gear
- Comprehensive User Manual
- Complete Tool Kit & Accessories
Value-Added RTR Features:
- Zero Assembly Required - Drive Immediately
- Pre-installed All-Terrain Tires (Tools Included)
- Optimized Protective Shipping Packaging
- Premium Retail Presentation Box
- Custom Racing Livery Decal Set
- Quick Start Racing Guide
- Full Warranty & Technical Support
PT14R Performance Videos
Real User Testing: High-Speed Sand Terrain Performance
Complete Unboxing & Quick Setup Guide
Multi-Terrain Performance Testing
